MAZAK Integrex 1850V 5-Axis Vertical Machining and Turning Center
- X Travel 120.3″
- Y Travel 72.8″
- Z Travel 70.9″
- 10,000 RPM Spindle
- 50 Horsepower
- 15,000lb Pallet Capacity
Cincinnati H5-1000XT 5-Axis Machining Center
- Capacity: 61″ x 72″ travel with automatic work changer
Okuma MA-400 5-Axis Machining Center
- Capacity: 560x610x625mm (22.05×24.01×24.61”)
- Rotary Pallet Size: 400x400mm (15.75×15.75”)
- Spindle Speed: min-1 (rmp) 8,000, [15,000, 20,000, 25,000, 35,000, 6,000{CAT50}, 12,000{CAT50}]
- Spindle Power Hi Winding: 15/11kW (20/15hp)
- Spindle Power Lo Winding: 11/7.5kW (15/10hp)
- Rapid Traverse: 11/7.5kW (15/10hp)
- Magazine Capacity: 30[opt. 40, 60, 100, 152, 198] Matrix Magazine
3 ea. – Makino A51 5-Axis Rotary Table
- Pallet 15.7″
- X 22.0″
- Y 22.0″
- Z 23.6″
- 12,000 RPM Spindle
- 880lb Maximum Payload
- Max Tool Length: 14.2″ (18.1″)
- Max Tool Diameter: 6.7″
- Max Tool Weight: 26.5 lbs
Makino A61 5-Axis Rotary Table
- Pallet 19.7″
- X 28.7″
- Y 25.6″
- Z 28.7″
- 12,000 RPM Spindle
- 1540lb Maximum Payload
- Max Tool Length: 14.2″
- Max Tool Diameter: 6.7″
- Max Tool Weight: 26.4 lb

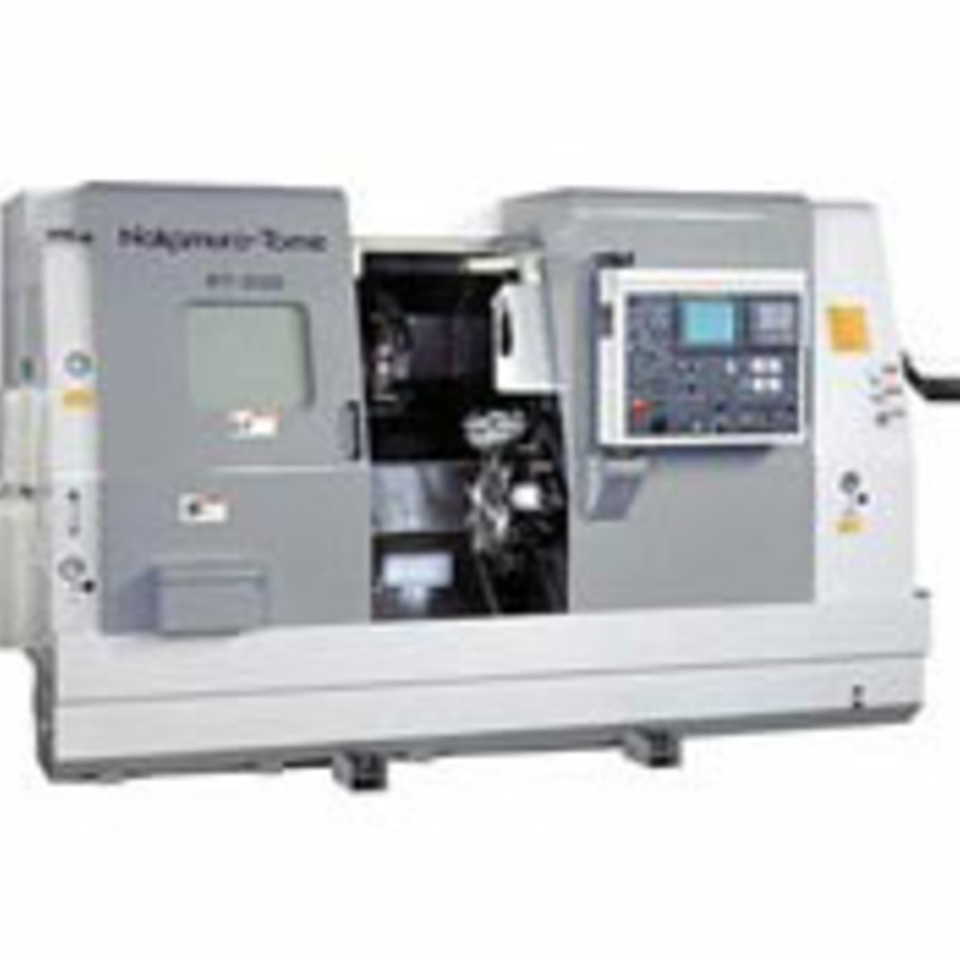

Nakamura-Tome WT-250 CNC Lathe
- Twin spindle, twin turret CNC lathe. Upper turret Y-Axis travel
- Fanuc 18iT CNC Controls
- 9.84″ Maximum Turing Diameter
- Dual 12 Position Turrets
- 2.50″ Bar Capacity
- 45 Degree Slant Bed
- 45-4500 RPM Spindle Speed
- 1418 IPM Z Axis Rapid Traverse

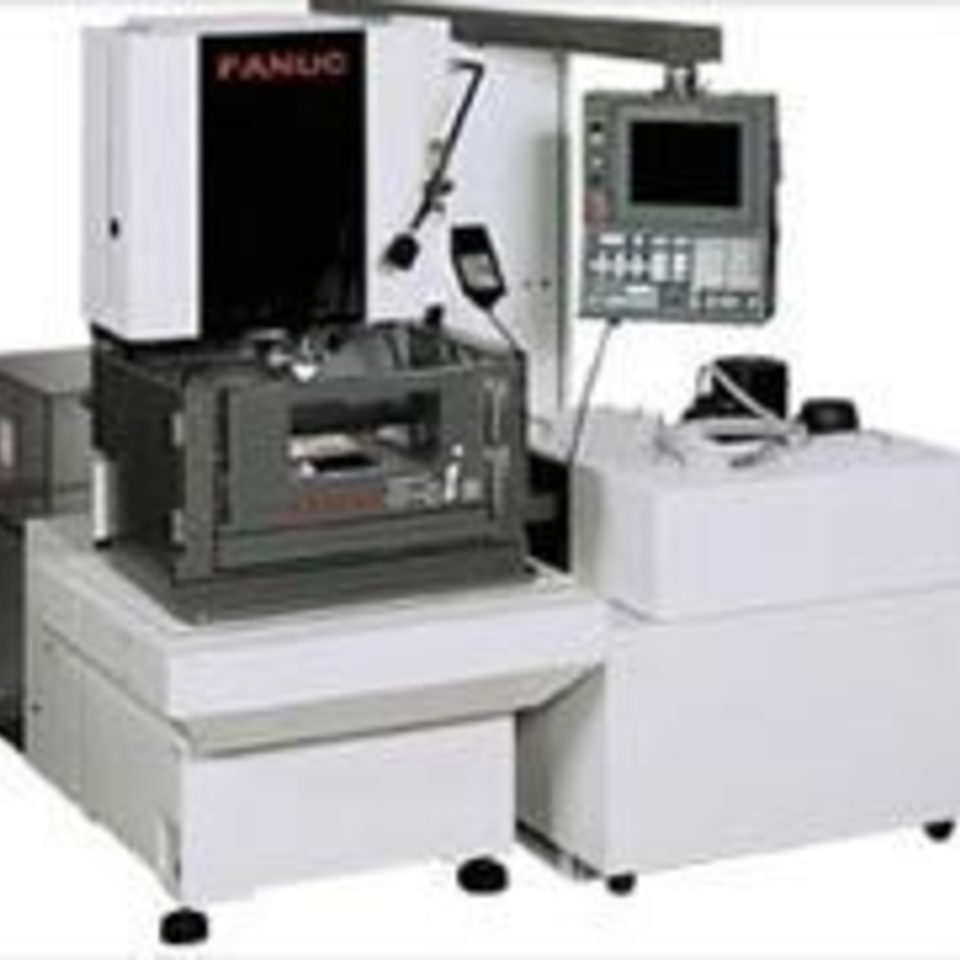

Fanuc OiB Wire EDM
- 12.6″ x 8.7″ x 7.1″ X,Y,Z Axes
- ± 2.364 U & V axes travel
- ± 30º (45º optional) maximum taper angle
- One 64-bit main micro-processor
- Four Auxiliary 32-bit micro-processors
- World’s fastest cutting AC power supply: 28 in²/hr
- Four millionths encoder resolution
- Workpiece thickness adaptive control
- Cut Monitor i Software
- Fanuc 180is WB control
Makino SP43 Wire EDM
- Table Size 28.7″ x 22.8″
- X 17.8″
- Y 11.8″
- Z 12.6″
- Tank Size 35″ x 33.5″ x 15.9
- Max Weight 1764 lbs
Trumpf Laser Engraving Machine
- VectorMark Compact, VMc3
- Marking Capacity: 5″ x 5″ x 12″
Mazak i630v with Vertical Turning Lathe
- Capacity- 2 each
- 41.3" dia. x 39.3"
Mazak V-140N/280
- Capacity: 275" x 181" x 27.95"/77"
Flow Integrated Flying Bridge CNC Abrasive Waterjet Machining Center
- Capacity: 60" x 144"
OMAX 55100 Abrasive Waterjet Machining Center
- Capacity: 55" x 100"
2 ea.- Haas VF3 CNC 4-Axis Vertical Mill
- Capacity: 40" x 20" x 15"
Haas VF4 CNC 5-Axis Vertical Mill
- Capacity: 50" x 20" x 15"
Haas VF6 CNC 5-Axis Vertical Mill
- Capacity: 60" x 30" x 20"
Makino A-61 Horizontal 5-Axis Machining Center
- Capacity: 31.5" dia. x 39.4"
2 ea.- Makino S-33 Vertical 5-Axis Machining Center
- Capacity: 25.6"x x 19.7"y x 17.7"z
Tsugami BH38, 10 Axis CNC Precision Swiss Lathe
- Equipped with Automatic Bar Feeder
- 8K Spindle RPM on both Main and Sub Spindle
- Max Bar Stock Diameter: 38 mm
Tsugami BH20, 10 Axis CNC Precision Swiss Lathe
- Equipped with Automatic Bar Feeder
- 12K Spindle RPM on both Main and Sub Spindle
- Max Bar Stock Diameter: 20 mm
Makino EDGE2S Sinker EDM
- Capacity: 11.8"x x 9.8"y x 9.8"z
SuperTec STP 2040CII, 3-Axis Automatic Surface Grinder
- Electro-Magnetic Chuck: 20" x 40"
Zeiss Dual Beam 900 5-Axis Coordinate Measuring Machine
Capacity: 60"x x 84"y x 36"z
Capacity: 60"x x 84"y x 36"z
Zeiss Spectrum 5-Axis Coordinate Measuring Machine
Capacity: 24"x x 24"y x 24"
Capacity: 24"x x 24"y x 24"
Brown & Sharp Coordinate Measuring Machine
Capacity: 20"x x 28"y x 20"
Capacity: 20"x x 28"y x 20"
Optical Comparator: HF750 Horizontal floor standing measuring projector
- 30" diameter screen
- 10x, 20x, and 50x magnification
FARO 12' Platinum Arm
- Software: VerisurfX, CAM2, Polyworks
FARO Vantage Laser Tracker
- Software: CAM2, Polyworks
